Elastic memory

A runner is given a memory limit when it is created, and a job that needs more than that is killed by the kernel the moment it asks: no warning, an exit code of 137, and a failed job that GitHub records as an ordinary failure. Most of the time the host the runner is on has gigabytes nobody was promised; a four-slot machine with one busy runner is holding three runners' worth of memory for three runners that are not using it. Elastic memory is the valve between the two. It watches each runner's memory, and when a job is about to hit its limit it raises the limit, out of what is spare on the host, before the kernel has to choose.

Memory is not CPU, and the difference is the whole design. A CPU quota can be lent and taken back a heartbeat later without anyone noticing; a memory limit that is lowered kills the process that was holding the difference. So the valve only ever raises a limit, what it lends stays with the runner until the runner is gone, and the host's side of the arithmetic (what is spare, and what the host keeps back for itself) is worked out with that in mind. Elastic CPU zoomies is the page for the CPU half.

It is a pool setting, on in its watching form for every new container pool, and nothing is lent until somebody turns it on.

What it promises

• A runner keeps what it was created with. The valve adds to a limit and never takes from one. A runner that is lent nothing is exactly the runner it would have been without it.
• Nothing promised to another runner is lent. Busy and starting runners are charged their whole guarantee before a megabyte is lent to anyone. Idle runners (warm capacity waiting for a job) are charged the largest guarantee among them, because only one of them can be handed a job before the next plan, and a job that is queued for this host has one runner's worth held back as well.
• The host keeps its floor. Its own reserve, and a twentieth of the machine on top, stay free whatever is asked, because a loan that leaves the machine exactly as much room as it was measured to need is how a host gets into trouble itself. A loan is made out of memory the host measures as free now, not only out of memory the books say nobody promised.
• A loan is never taken back. Lowering a live limit is what kills the job a loan was meant to save, so there is no taking back: what a runner was lent it holds until it is removed, and the placement ledger charges the host for it, so the next runner sees the room the loan used. On an ephemeral pool, the default, that is one job. On a pool that reuses its runners, a loan outlives the job that needed it.
• A restart does not kill a job. The agent keeps the last rules it was sent, and acts on them while the controller is away. What each runner holds is read back from the container runtime rather than remembered.

How it works

Two halves do the work, because they know different things.

flowchart LR
    subgraph controller["The controller, on every heartbeat"]
        direction TB
        ledger["charge every runner<br/>its guarantee, the idle ones one<br/>between them, one queued start"]
        pool["pool = what is left of the machine<br/>above its floor, and free now"]
        rules["rules for each runner:<br/>guarantee, ceiling, swap allowed"]
        ledger --> pool --> rules
    end
    subgraph agent["The agent, between heartbeats"]
        direction TB
        look["look at each container's memory<br/>every second when it is hot or climbing,<br/>else every few"]
        guard{"close to its limit?"}
        raise["raise it: use plus a third,<br/>within the ceiling, the pool and<br/>what the host has free right now"]
        swap["last resort: allow some swap"]
        look --> guard
        guard -- no --> look
        guard -- yes --> raise --> swap
    end
    rules -- "carried in the heartbeat's answer" --> look
    look -. "what each runner holds, in its report" .-> ledger

The controller decides how much the host as a whole may give away. It does not decide what each runner is to have, because a kernel that is about to kill a compiler does not wait for a heartbeat thirty seconds away: the agent hands the pool out as runners need it, one container at a time, inside the rules the last heartbeat gave it. The one decision the agent makes for itself is the one that cannot wait.

The host's pool

A host's pool is what no runner's share needs and the host measures as free, above a floor it keeps for itself.

Line	Example: a 32 GB host, four 6 GB slots
The machine	32768 MB
less the floor; the host's reserve, and a twentieth of the machine	− 3276 MB
less three busy runners' guarantees	− 18432 MB
less the largest idle runner's guarantee	− 6144 MB
less a queued start, if a compatible job is waiting	− 0 MB
may be lent, by the ledger	4916 MB

If the host measures less free memory than the ledger allows (a page cache that is not coming back, something else on the machine) the free memory is the limit instead, and the host card says which of the two it was. What has been lent already is part of the total and comes off what is left: after a runner is lent 1216 MB, the pool above is 3700 MB.

What the agent does for one container

How closely a container is watched follows how close it is. The agent looks every second while a container is using seven tenths of its limit, or is gaining memory fast enough to reach its limit within ten seconds at the pace of its last two looks, and every five seconds otherwise. The pace is read as well as the share because a raise leaves a container with a wide margin and so reading cold, while the build that needed the raise may be climbing still, and a look five seconds on would find it at its new limit. A job that goes from quiet to the end of its limit between two looks is faster than anything polled, and is one of the kills listed below that the valve cannot prevent.

A container's limit is kept a third above what it is using, rounded up to 64 MB, which leaves room for the allocation a compiler makes between two looks. While it is, nothing happens. When use climbs past that point the agent raises the limit to restore the margin (by at least 128 MB where there is room for that much, because a raise is a call to the daemon) and only as far as four things allow, asked in the order an operator would fix them:

What stopped the raise	The decision	What to do about it
The runner already holds the most it may	at_ceiling	Raise the pool's memory ceiling, or the host's cap, if that is the lower of the two, or give each runner more to start with.
The host's pool is empty	pool_empty	The host's slots add up to its machine. Lower its capacity, give its runners a smaller share, or put this pool on a larger host.
The host's free memory is at its floor	host_floor	The same, or look for what else is using the machine.
The host's free memory could not be read	unmeasured	Nothing is lent: a loan that cannot be checked is not made. The valve is offered where the host's memory can be read, which is Linux.

A raise that went through says raised; a container well inside its limit says healthy. Two more codes are about the container runtime and not the host: unsupported, a runtime that refused to change a limit that is already set, it is not asked again, and failed, a refusal for any other reason, which is. failed is also what a runner says when three looks in a row could not read its memory from the runtime: a valve that cannot see a runner protects nothing, and an observing pool's evidence would otherwise be an empty page that reads as a quiet one.

Each decision carries its reason in plain words, with the numbers it had: "raised the limit from 6144 to 6656 MB: it was using 5400 MB", or "it is using 7900 MB of its 8192 MB limit and wants more, but the host has no spare memory left to lend". The runner's page shows the latest one that was not healthy.

Swap as the last resort

Swap turns a kill into a slowdown, and some operators would rather have the kill, so a pool allows none until somebody says how much. When a container cannot be raised any further (the ceiling, an empty pool, a host at its floor) and it is using nine tenths of its limit, the agent lets it use swap beyond the limit, up to the allowance the pool gives each container and no more than the host has free. The job slows down instead of being killed, and the runner's page says it may be using swap. It is the one thing the valve does that costs speed, which is why it is a setting of its own and not part of "on".

Docker-in-Docker, and folders kept in memory

A dind pool's runner and its sidecar are one logical runner: the ceiling covers both and the loan is the pair's, but each container is looked at on its own, because the build that is running out of memory is in one of them and not in the sum.

A folder kept in memory is charged to the runner's memory limit, so it is what the valve sees filling up. The valve raises the container's limit; it does not resize a folder, whose size was fixed when the container was created, so a work folder that fills to its own size is still full. What it prevents is the kernel killing the container because the folder and the job together outgrew the limit. Keeping the work folder in memory says what each folder costs.

The three modes

memory_burst.mode	What it does	Who gets it
off	Nothing. Runners keep exactly what they were created with.	Every pool that existed before the valve did, and every pool on the process backend, which has no container to raise the limit of. An upgrade changes no running limit.
observe	Makes every decision above and records it, and changes nothing. The runner's page says what the valve would have lent.	Every new Docker or Podman pool, whatever its size is decided by.
automatic	Raises the limit of a running container, and says so.	A pool you have switched on, after watching observe.

observe exists so that turning the valve on is a decision made with evidence. A pool is observed the way it will be run: the agent keeps a virtual limit for each runner that moves as an automatic one's would, and a pool of observers shares the pool the way real borrowers would, so what it reports is what would have happened. Leave a new pool on it for a few days, then read what it published:

Metric	What to look for
zoomies_elastic_memory_near_limit_total{pool, mode}	Runners that came within a tenth of a memory limit, once each. A pool that never moves this has no use for the valve, and can stay on observe for good.
zoomies_elastic_memory_decisions_total{pool, mode, outcome}	What the valve reported of each runner, once per heartbeat. Read raised against pool_empty and host_floor: a pool that wants memory and finds none is a pool whose hosts are too full for the valve to help, which a larger host or a smaller share fixes better than a higher ceiling.

The mode is the operator's on every pool, including the pools the controller keeps from your hosts: it is a policy, not a figure worked out from the machines, and without that the pools most fleets run on would be the ones that could never turn it on. A pool the controller makes starts on observe and an existing one stays off, like any other.

The ceiling

max_memory_mb is the most one logical runner may hold, its own share and what it is lent together. Zero, the default, is half as much again as it starts with, which is enough to turn most kills that a build just failed to fit under into a job that finished, and little enough that one runaway job cannot take a machine from the runners beside it. Set one for a pool whose jobs are known to need more, or to keep one job from taking more than a given share of a host.

The ceiling is also never above the memory of the host, or of the daemon the runner runs on where that is the smaller machine (a Docker Desktop or VM daemon refuses a limit above its own memory outright, so a ceiling past it would be a loan that fails every time) and never below what the runner started with, because a ceiling under a runner's own share would be a request to take memory back.

A host can set a ceiling of its own, burst_max_memory_mb in its runner profile, for a machine whose owner wants a limit on how much of it one job may take whatever the pool says. It is a cap: it lowers whatever the pool asked for (a ceiling it named, or the default of half as much again) and never raises it, so a host capped at 32 GB does not give a pool that left the figure alone 32 GB.

Turning it on

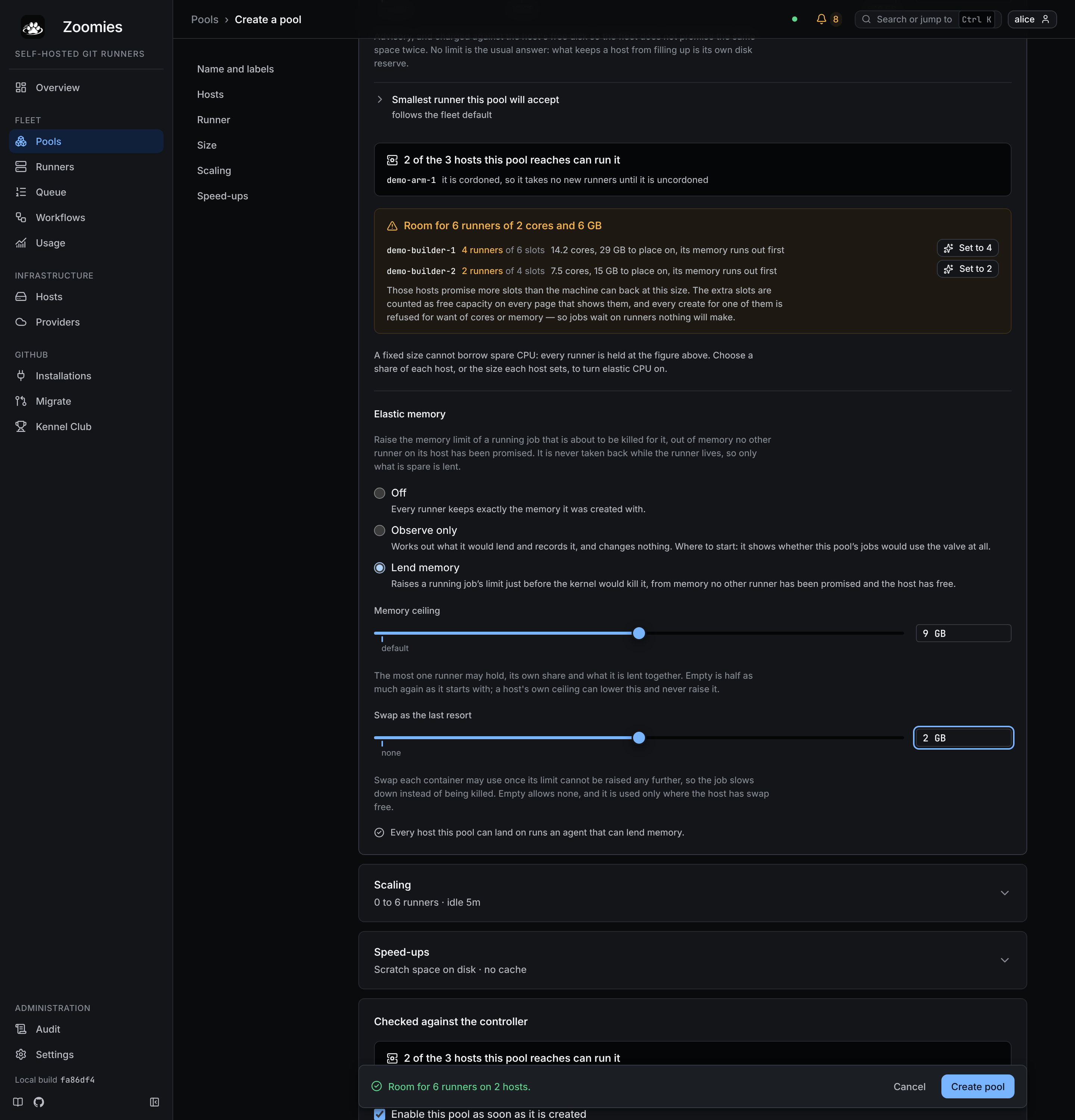

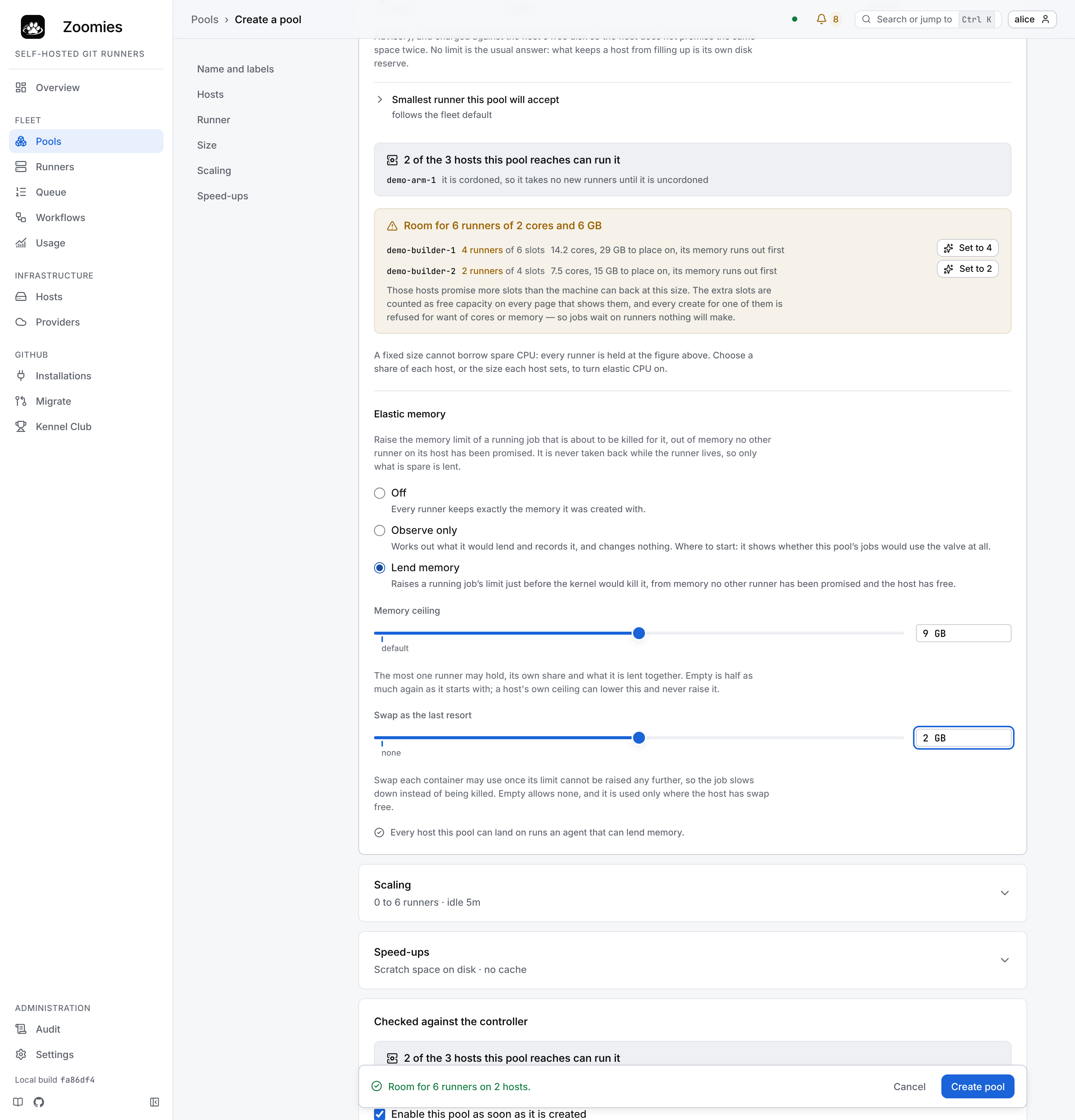

In the pool editor, Elastic memory is in the Size section, a choice of three with a ceiling and the swap it may fall back on beside it:

For a pool the controller keeps, Settings on the pool's page has the same choice. From the command line:

zoomies pools edit pool_k3f9qz2m --memory-burst automatic
zoomies pools edit pool_k3f9qz2m --memory-burst-max 12288 --memory-burst-spill 2048
zoomies hosts edit hst_k3f9qz2m --burst-max-memory-mb 16384

Or over the API (memory_burst on a pool, runner_profile.standard.burst_max_memory_mb on a host) which is the shape zoomies pools export writes and import reads:

{ "memory_burst": { "mode": "automatic", "max_memory_mb": 12288, "spill_mb": 2048 } }

What it needs of a host is an agent that can raise a limit between heartbeats. An agent that predates the valve, or that is not on Linux, is sent no rules and a runner there keeps the memory it was created with; the pool editor names those hosts beside the choice, and pool.elastic_memory_unsupported says it where the pool is saved.

What you see

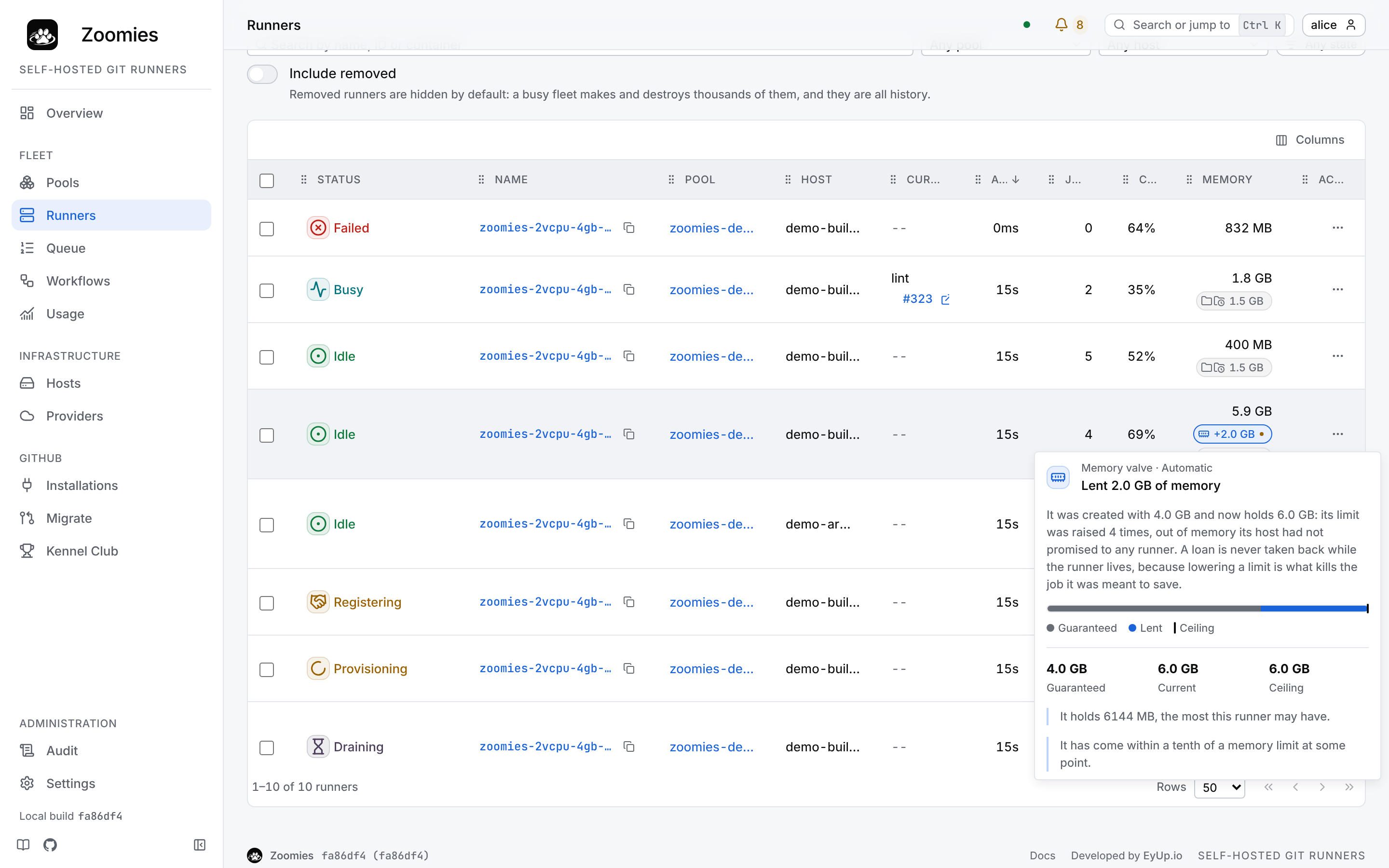

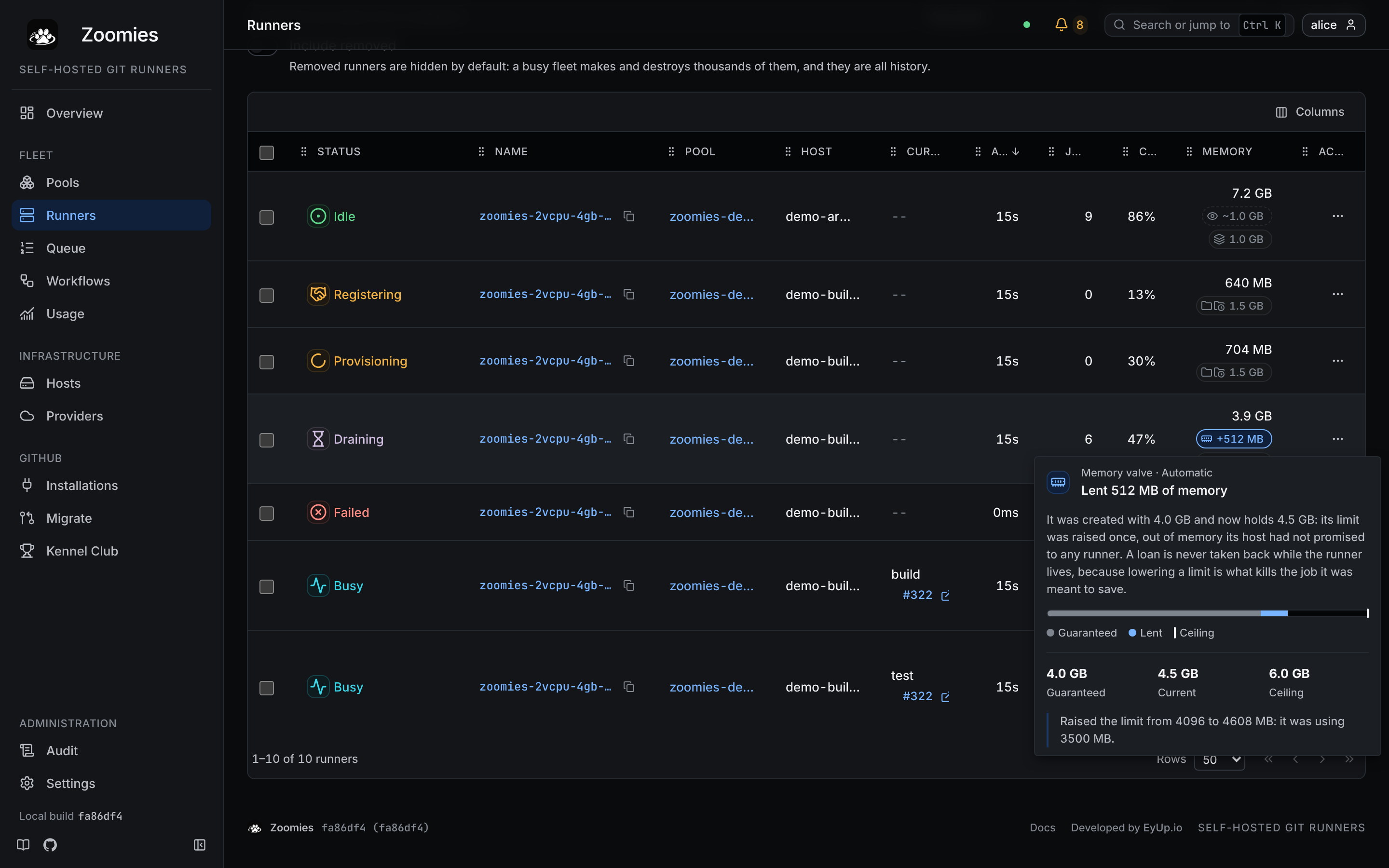

On the Runners page, a runner the valve has something to say about wears a small pill, and a runner whose pool keeps folders in memory wears another. The pills are in the Memory column, under the figure; a column a narrow window leaves out, in which case they are on the runner's page. Hover, focus, or tap a pill for its card: what it means, the runner's memory as a bar and three figures (guaranteed, current and ceiling), and the agent's own sentence for why.

Pill	What is true
+1.5 GB, in the accent colour	The runner was lent 1.5 GB beyond what it was created with. A small dot on it means the runner wants more and cannot have it.
Swap, in the caution colour	The runner may also use swap past its limit: the last resort.
At ceiling, Host full	The runner wanted more and was refused, with no loan to show for it: it holds the most it may, or its host had no spare memory.
Unmeasured, Unsupported, Raise failed	The valve could not act on this runner: its host's memory could not be read, its runtime cannot change a live limit, or the runtime refused.
~1.0 GB, dashed	An observe pool's valve would have lent this much. Nothing was lent.
A folder and a clock, with a size	The runner was given its work folder and /tmp in memory, and the pill says what they come to. One icon for each folder that is in memory.
On disk, dashed	The pool asked for folders in memory and this runner was not given any, as its card says why.

A runner the valve has nothing to say about wears nothing, so a pool that uses none of this reads as the grid always has.

On a runner's page the same pills sit beside its status, and a Memory and folders panel draws the cards open. Under Resource usage, the memory figure is measured against what the runner may hold now, with the loan counted: 4.9 GB of 5.5 GB allowed, 1.5 GB of it lent.

On a host's card, Memory to lend is the pool as a bar drawn against the whole machine (what is promised, what the host keeps back, what is lent, and what is left) with the ledger behind it, line by line, in the card that opens from it on hover, focus or a tap. A host that has refused a runner memory in the last quarter of an hour says when, and why.

In the problems drawer, three codes say where the valve is short, each with what to change:

Code	Raised when
host.memory_pool_exhausted	A runner on a host needed memory and the host had none to lend.
pool.memory_ceiling_reached	A runner held everything it may be lent and still wanted more.
pool.elastic_memory_unsupported	A pool has the valve on and some host it can land on cannot carry it out.

In Prometheus, the two series above, and zoomies_host_memory_pool_bytes and zoomies_host_memory_lent_bytes for each host. There is no per-runner label, on purpose: a fleet makes and destroys thousands of runners.

When a job is still killed

A job that is killed on a pool with the valve says whether it was in play. The explanation on the job ends with one of three sentences:

• The memory valve had lent it 1.5 GB on top of its 4 GB, so it held 5.5 GB when it was killed; it was given what the pool allowed and it was not enough. Raise the ceiling, or give each runner more to start with.
• The memory valve was on for this pool and lent it nothing: … followed by why; the host had none to spare, or the runner was at its ceiling. The fix is the one in the decision table above.
• The memory valve was only observing for this pool, so it lent nothing; it would have given the runner up to 1 GB more; the evidence that turning it on would have saved the job.

A kill is still possible with the valve on, and some are not its to prevent. A spike faster than the margin between two looks can reach the old limit, which is a limit of the idea and not something a faster poll fixes. A job that needs more than the machine has needs a bigger machine. And a runner on a host whose agent cannot carry the valve out is, for this, exactly what it was.

What it does not do

• It does not move the process backend: a plain process has no container limit to raise.
• It does not lend CPU. That is elastic CPU, which can take what it lends back, and which is judged on a host's busyness where this is judged on its free memory.
• It does not take a loan back, shrink a folder or free a page cache. What it adds is the one thing it can: a higher limit on a container that is still running.
